Cours NoSQL

class: center, middle, inverse

# Cours NoSQL: MongoDB

## Haïkel Guémar - haikel.guemar@gmail.com

---
class: center, middle, inverse

# Introduction

![logo](img/mongodb-logo.png)

---
class: middle

## Pré-requis

On s'appuiera sur la stack MEAN (MongoDB Express Angular.js Node.js)

---
class: middle

## Qu'est-ce que MongoDB?

* Une base orienté documents
* Stocke des documents sous forme de JSON (enfin BSON)
* Collections de documents
* Schemaless

```javascript
{ "name": "Haïkel", "age": 31 }
{ "a": 6, "b": 8, "fruits": [ "pomme", "poire", "banane" ] }
```

---
class: middle

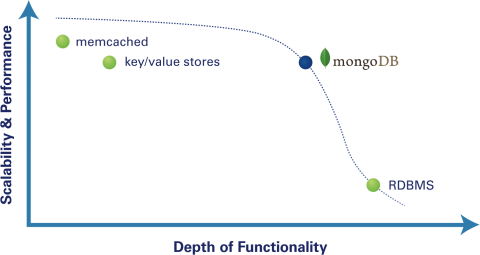

## Comparé au SGDBR

![comparaison](img/Knee_Curve_2.png)

Pour conserver des bonnes performances, MongoDB a renoncé:
* jointures
* transaction multi-collections

---
class: middle, center, inverse

# Installation & prise en main

---
class: middle

## MongoDB

* Téléchargements (Windows/Mac)
http://www.mongodb.org/downloads
* Documentation d'installation
http://docs.mongodb.org/manual/installation/

---
class: middle

## Préparer le lancement du serveur (manuel)

```bash
$ mkdir -p data/db
$ touch data/log
$ mongod --dbpath data/db --logpath data/log --smallfiles
```
---
class: middle

## Préparer le lancement du serveur (système)

```bash
$ sudo systemctl enable mongod
$ sudo systemctl start mongod
```

---
class: middle

## Shell MongoDB

```bash
$ mongo
> help # affiche l'aide en ligne
> show dbs
> use demo
> show dbs
> show collections
> show db
> db.students.insert({'name': 'bob'})
> db.students.find()
{ "_id" : ObjectId("54f3b319f5cbf67ce40c79f7"), "name" : "bob" }
> for (var i = 0; i < 10; i++) { db.students.insert({ 'x': i }) }
> db.students.remove()
> db.students.drop()

```

---
class: center, middle, inverse

# Introduction à JSON

---
class: middle

* Javascript Object Notation
* Format léger d'échange de données
* Compréhensible par les humains
* Sous ensemble du langage Javascript
* compatible avec la plupart des langages

---
class: middle

## Structure de base

```
{
<key>: <value>,
<key>: <value>,
<key>; [ <value>, <value>],
<key>: { <key>: <value> }
}
```
---
class: middle

## Types de valeurs

* null
* booléen: true/false
* nombre (pour les entiers, utiliser les classes NumberInt, NumberLong respectivement 4 et 8 octets)
* chaine de caractères
* date
* expression régulière
* tableau
* document !
* ObjectId
* code

---
class: middle

## Exemple

```javascript
db.things.insert({'class': 'nosql', 'students': { 'name': 'john',
'pouvoir': ['bouclier', 'flamme'], 'naissance': new Date('8 octobre 1985')}})
> db.things.findOne().pretty()
{
  {
  "_id" : ObjectId("54f3b7c480beed8e67d55383"),
  "class" : "nosql",
  "students" : {
    "name" : "john",
    "pouvoir" : [
      "bouclier",
      "flamme"
     ],
  "naissance" : ISODate("1985-10-07T23:00:00Z")
  }
}

```
---
class: center, middle, inverse

# CRUD

![logo](img/mongodb-logo.png)

---
class: middle

## Késako ?

* Create
* Read
* Update
* Delete

---
class: middle

## Késako ?

* 4 opérations de base pour la persistence des données
* En SQL: INSERT/SELECT/UPDATE/DELETE
* En HTTP: POST/GET/PUT & PATCH /DELETE

---
class: middle, inverse, center

# Le Shell Mongo

---
class: middle

## Le Shell Mongo

* Interpréteur javascript interactif

---
class: middle, inverse, center

# Introduction à BSON

---
class: middle

## BSON

* Représentation binaire des données interne à Mongo
* Binary JSON
* Spécifications disponibles: http://bsonspec.org

---
class: center, middle, inverse

# Opérations CRUD

---
class: middle

## Insertion de documents

```javascript
> doc = {'firstname':  'John', 'lastname': 'Doe', 'age': 27, 'job': 'hacker'}
> db.people.insert(doc)
> db.people.find()
{ "_id" : ObjectId("55061885219c11312767daf9"), "firstname":  "John", "lastname": "Doe", "age": 27, "job": "hacker"}

```

---
class: middle

## à vous !

Insérer dans la collection fruits, le document avec les attributs suivants:

* name => apple
* color => red
* shape => round

---
class: middle

## Réponse

```javascript
> db.fruit.insert({'name': 'apple', 'color': 'red', 'shape': 'round'})
> db.fruit.find()
{ "_id" : ObjectId("55061955219c11312767dafa"), "name" : "apple", "color" : "red", "shape" : "round" }
```

---
class: middle

## Importer un document JSON dans une base mongo

```bash
$ mongoimport --collection grades < grades.json
$ mongoexport --collection grades -o grades_modified.json
```

---
class: middle

## Recherche de documents

```javascript
> db.grades.findOne()
{
"_id" : ObjectId("55061a4b2f114ea71af85559"),
"student" : "Joe",
"assignment" : "hw1",
"grade" : 90
}
> db.grades.findOne({'student': 'Susan'})
{
"_id" : ObjectId("55061a4b2f114ea71af85565"),
"student" : "Susan",
"assignment" : "hw1",
"grade" : 100
}
> db.grades.findOne({'student': 'Susan'}, {"student": true})
{ "_id" : ObjectId("55061a4b2f114ea71af85565"), "student" : "Susan" }
```

---
class: middle

## Recherche de documents

```javascript
> db.grades.find({'student': 'Steve', 'grade': 100}, {'_id': false })
{ "student" : "Steve", "assignment" : "hw3", "grade" : 100 }
{ "student" : "Steve", "assignment" : "exam", "grade" : 100 }
> db.grades.find()
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), "student" : "Joe", "assignment" : "hw1", "grade" : 90 }
{ "_id" : ObjectId("55061a4b2f114ea71af8555a"), "student" : "Joe", "assignment" : "hw2", "grade" : 80 }
{ "_id" : ObjectId("55061a4b2f114ea71af8555b"), "student" : "Joe", "assignment" : "hw3", "grade" : 85 }
{ "_id" : ObjectId("55061a4b2f114ea71af8555c"), "student" : "Joe", "assignment" : "exam", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af8555d"), "student" : "Steve", "assignment" : "hw1", "grade" : 80 }
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), "student" : "Steve", "assignment" : "hw2", "grade" : 90 }
{ "_id" : ObjectId("55061a4b2f114ea71af8555f"), "student" : "Steve", "assignment" : "hw3", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af85560"), "student" : "Steve", "assignment" : "exam", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af85561"), "student" : "Amanda", "assignment" : "hw1", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af85562"), "student" : "Amanda", "assignment" : "hw2", "grade" : 90 }
{ "_id" : ObjectId("55061a4b2f114ea71af85563"), "student" : "Amanda", "assignment" : "hw3", "grade" : 80 }
{ "_id" : ObjectId("55061a4b2f114ea71af85564"), "student" : "Amanda", "assignment" : "exam", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af85565"), "student" : "Susan", "assignment" : "hw1", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af85566"), "student" : "Susan", "assignment" : "hw2", "grade" : 90 }
{ "_id" : ObjectId("55061a4b2f114ea71af85567"), "student" : "Susan", "assignment" : "hw3", "grade" : 85 }
{ "_id" : ObjectId("55061a4b2f114ea71af85568"), "student" : "Susan", "assignment" : "exam", "grade" : 80 }
```

---
class: middle

## Requêtes avec $gt & $lt

```javascript
> db.grades.find({grade: {$gt : 90 }})
{ "_id" : ObjectId("55061a4b2f114ea71af8555c"), "student" : "Joe", "assignment" : "exam", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af8555f"), "student" : "Steve", "assignment" : "hw3", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af85560"), "student" : "Steve", "assignment" : "exam", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af85561"), "student" : "Amanda", "assignment" : "hw1", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af85564"), "student" : "Amanda", "assignment" : "exam", "grade" : 100 }
{ "_id" : ObjectId("55061a4b2f114ea71af85565"), "student" : "Susan", "assignment" : "hw1", "grade" : 100 }
> db.grades.find({grade: {$gte : 90, $lt: 100 }})
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), "student" : "Joe", "assignment" : "hw1", "grade" : 90 }
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), "student" : "Steve", "assignment" : "hw2", "grade" : 90 }
{ "_id" : ObjectId("55061a4b2f114ea71af85562"), "student" : "Amanda", "assignment" : "hw2", "grade" : 90 }
{ "_id" : ObjectId("55061a4b2f114ea71af85566"), "student" : "Susan", "assignment" : "hw2", "grade" : 90 }
```

---
class: middle

## Opérateurs

$gte / $lte

$gt / $lt

fonctionne avec les chaines de caractères (case-insensitive

---
class:  middle

## Requêtes avec $exists, $type, $regex

```javascript
> db.people.find()
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), "name" : "Smith", "age" : "51", "job" : "CEO", "hobby": "cycling" }
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), "name" : "Jones", "age" : "32", "job" : "Lead Dev" }
{ "_id" : ObjectId("55061a4b2f114ea71af85562"), "name" : "Doe", "age" : "24", "job" : "Dev" }
{ "_id" : ObjectId("55061a4b2f114ea71af85566"), "name" : "McAllistair", "age" : "37", "job" : "Sales" }
{ "_id" : ObjectId("55061a4b2f114ea71af85566"), "name" : 43, "age" : "28", "job" : "Designer" }
> db.people.find({hobby: {$exists: true}})
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), "name" : "Smith", "age" : "51", "job" : "CEO", "hobby": "cycling" }
> db.people.find({name: {$type: 16}})
{ "_id" : ObjectId("55061a4b2f114ea71af85566"), "name" : 43, "age" : "28", "job" : "Designer" }
> db.people.find({job: {$regex: ".* Dev$"})
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), "name" : "Jones", "age" : "32", "job" : "Lead Dev" }
```

---
class: middle

## à vous !

Ecrire une requête pour récupérer dans la collection users, les utilisateurs ayant la lettre q dans leur nom
et ayant renseignés un email.

---
class: middle

## Réponse

```javascript
db.users.find({name: {$regex: '.*q.*'}, email: {$exists: true}})
```

---
class: middle

## Combiner les conditions avec $and & $or

```javascript
> db.people.find({$or: [{age: {$lt: 30}}, {age: {$gt: 39}}]})
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), "name" : "Smith", "age" : "51", "job" : "CEO", "hobby": "cycling" }
{ "_id" : ObjectId("55061a4b2f114ea71af85562"), "name" : "Doe", "age" : "24", "job" : "Dev" }
{ "_id" : ObjectId("55061a4b2f114ea71af85566"), "name" : 43, "age" : "28", "job" : "Designer" }
> db.people.find($and: [{$or: [{age: {$lt: 30}}, {age: {$gt: 39}}]}, {job: "Designer}]})
{ "_id" : ObjectId("55061a4b2f114ea71af85566"), "name" : 43, "age" : "28", "job" : "Designer" }
```

---
class: middle

## Requêtes d'un sous-document: array

Pas de récursion, on peut matcher avec un les éléments top-level d'un array

```javascript
> db.accounts.insert({name: "Georges", favorites: ["pretzel", "kitkat"]})
> db.accounts.find({favorites: "pretzel"]})
{ "_id" : ObjectId("55061a4b2f114ea71af85566"), name: "Georges", favorites: ["pretzel", "kitkat"] }
```

---
class: middle

## Requêtes d'un sous-document: $in, $all

```javascript
> db.accounts.find()
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Georges", favorites: ["pretzel", "kitkat"]}
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Howard", favorites: ["pretzel", "cheese"]}
{ "_id" : ObjectId("55061a4b2f114ea71af85562"), name: "Mike", favorites: ["beer", "kitkat"]}
> db.accounts.find({name: {$in: ["Georges", "Mike"]}})
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Georges", favorites: ["pretzel", "kitkat"]}
{ "_id" : ObjectId("55061a4b2f114ea71af85562"), name: "Mike", favorites: ["beer", "kitkat"]}
> db.accounts.find({name: {$nin: ["Georges", "Mike"]}})
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Howard", favorites: ["pretzel", "cheese"]}
> db.accounts.find({favorites: {$all: ["pretzel", "cheese"]}})
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Howard", favorites: ["pretzel", "cheese"]}
```

---
class: middle

## Requêtes d'un sous-document: dot-notation

```javascript
> db.users.insert({name: "Haïkel", email: {pro: "hguemar@redhat.com", communautaire: "hguemar@fedoraproject.org"}})
> db.users.find({email: {pro: "hguemar@redhat.com", communautaire: "hguemar@fedoraproject.org"}})
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Haïkel", email: { pro: "hguemar@redhat.com", communautaire: "hguemar@fedoraproject.org" } }
> db.users.find({email: {communautaire: "hguemar@fedoraproject.org", pro: "hguemar@redhat.com"}})
> db.users.find({"email.pro": "hguemar@redhat.com"})
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Haïkel", email: { pro: "hguemar@redhat.com", communautaire: "hguemar@fedoraproject.org" } }
```

---
class: middle

## Requêtes en détail

```javascript
> cursor = db.people.find(); null;
> cursor.hasNext()
> cursor.next()
> cursor.limit(4)
> cursor.sort({name: -1})
> cursor.skip(30)
```

---
class: middle

## Compter

```javascript
> db.grades.count({grade: {$gt: 90}})
6
```

---
class: middle

## Mettre à jour un document

---
class: middle

## Mettre à jour un document (non destructif)

```javascript
> db.people.find()
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Smith", age: 34, job: "hacker"}
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Doe", age: 27, job: "backer"}
> db.people.update({name: "Smith"}, {age: {$inc: 2}})
> db.people.find()
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Smith", age: 36, job: "hacker"}
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Doe", age: 27, job: "backer"}
> db.people.update({name: "Doe"}, {job: {$set: "slacker"}})
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Smith", age: 36, job: "hacker"}
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Doe", age: 27, job: "slacker"}
```
---
class: middle

## Supprimer un attribut d'un document avec $unset

```javascript
> db.people.find()
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Smith", age: 34, job: "hacker", hobby: "cycling"}
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Doe", age: 27, job: "backer"}
> db.people.update({name: "Smith"}, {$unset: {hobby: 1}})
> db.people.find()
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Smith", age: 34, job: "hacker"}
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Doe", age: 27, job: "backer"}
> db.people.update({name: "Doe"}, {job: {$set: "slacker"}})
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Smith", age: 36, job: "hacker"}
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Doe", age: 27, job: "slacker"}

```

---
class: middle

## Manipuler les listes dans un document

$push, $pop, $pushAll, $pullAll, $addToSet

```javascript
> db.data.insert({_id: 0, a: [1, 2, 3, 4]})
> db.data.find()
{ "_id" : 0, "a" : [  1,  2,  3,  4 ] }
> db.data.update({_id: 0}, {$set: {"a.2":5 } })
> db.data.find()
{ "_id" : 0, "a" : [  1,  2,  5,  4 ] }
> db.data.update({_id: 0}, {$push: {a: 6 } })
> db.data.find()
{ "_id" : 0, "a" : [  1,  2,  5,  4,  6 ] }
> db.data.update({_id: 0}, {$pop: {a: 0} })
> db.data.find()
{ "_id" : 0, "a" : [  1,  2,  5,  4 ] }
> db.data.update({_id: 0}, {$pop: {a: -1} })
> db.data.find()
{ "_id" : 0, "a" : [  2,  5,  4 ] }
> db.data.update({_id: 0}, {$pushAll: {a: [7, 8, 9]} })
> db.data.find()
{ "_id" : 0, "a" : [  2,  5,  4,  7,  8,  9 ] }
> db.data.update({_id: 0}, {$pull: {a: 5} })
> db.data.find()
{ "_id" : 0, "a" : [  2,  4,  7,  8,  9 ] }
> db.data.update({_id: 0}, {$addToSet: {a: 5} })
> db.data.find()
{ "_id" : 0, "a" : [  2,  4,  7,  8,  9,  5 ] }
> db.data.update({_id: 0}, {$addToSet: {a: 5} })
> db.data.update({_id: 0}, {$addToSet: {a: 5} })
> db.data.find()
{ "_id" : 0, "a" : [  2,  4,  7,  8,  9,  5 ] }
```

---
class: middle

## Upserts

```javascript
> db.people.find()
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Smith", age: 34, job: "hacker", hobby: "cycling"}
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Doe", age: 27, job: "backer"}
> db.people.update({name: "Jones"}, {age: 40})
> db.people.find()
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Smith", age: 34, job: "hacker", hobby: "cycling"}
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Doe", age: 27, job: "backer"}
> db.people.update({name: "Jones"}, {age: 40}, {$upsert: true})
> db.people.find()
{ "_id" : ObjectId("55061a4b2f114ea71af85559"), name: "Smith", age: 34, job: "hacker", hobby: "cycling"}
{ "_id" : ObjectId("55061a4b2f114ea71af8555e"), name: "Doe", age: 27, job: "backer"}
{ "_id" : ObjectId("55061a4b2f114ea71af8555f"), name: "Jones", age: 40}
```

---
class: middle

## Multi-update

---
class: middle

## Supprimer un document

## Récupérer les erreurs

```javascript
> db.people.insert({name: "Jones",  age: 20})
> db.runCommand({ getLastError: 1 })
{ n: 0, "connectionId": 9, "err": null, "ok": 1 }
> db.people.update({}, {$set: {title: "Dr"}}, {multi: true})
> db.runCommand({ getLastError: 1 })
{ "updatedExisting": true, n: 2, "connectionId": 9, "err": null, "ok": 1 }
> db.people.update({name: Thompson}, {$set: {title: "Dr"}}, {upsert: true})
> db.runCommand({ getLastError: 1 })
{ "updatedExisting": false, upserted: ObjectId("55061a4b2f114ea71af85558"), n: 1, "connectionId": 9, "err": null, "ok": 1 }
```
---
class: middle, center, inverse

# Q/A
